LowBoard® RdB – OMNIE
for acoustic and resilient floors
Perfect for heat pumps

Perfect for heat pumps

Multi-directional pipe channels

Multi-directional pipe channels

Low build-up/ perfect for retro-fit

Low build-up/ perfect for retro-fit

Low build-up floating underfloor heating system with integrated acoustic insulation

  • Ideal for use with heat pumps
  • Multi-directional pipe channels
  • Low build-up making it perfect for retrofit projects

LowBoard RdB is a low build up underfloor heating system and acoustic separation in one. It is designed to dampen vibration and attenuate impact and airborne sound passing through floors with minimum loss of floor height. The system can be laid on solid or timber floors and is supplied with edge isolation strip.

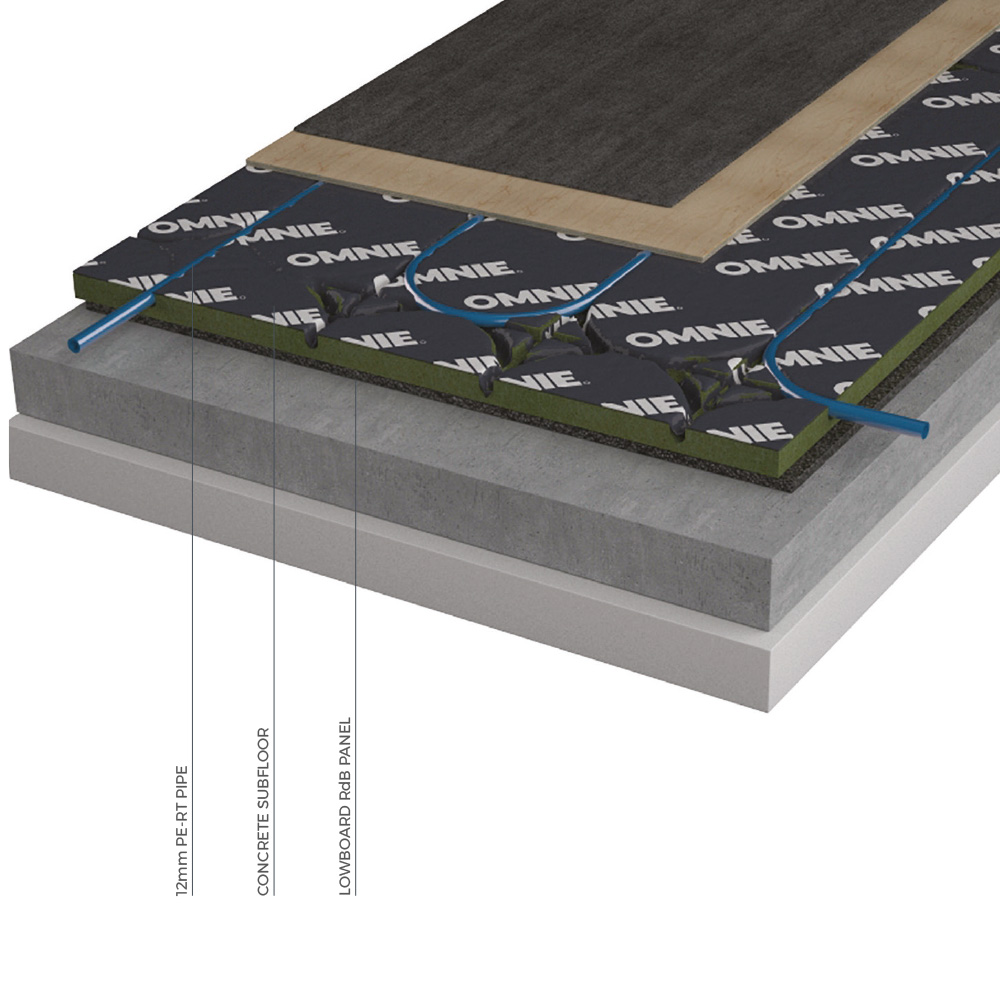

The LowBoard RdB panels comprise of a 15mm moisture resistant high-density wood board combined with an 8mm acoustic rubber offset to provide a lap joint. As per our standard LowBoard 15 product the wood board layer has grooves routed to accept 12mm pipe and an aluminium layer bonded to the top which acts to spread the heat through the floor. The panels are laid in a brick pattern with the pipe installed by piercing through the soft temper aluminium diffuser into the multi directional channels. A finished floor deck or 6mm ply, MDF or similar is floated or mechanically fixed over the LowBoard RdB panels to complete the floor.

LowBoard® RdB

Specifications

Panel Thickness (mm)
23
Height (mm)
1200
Width (mm)
600
Independently Tested
BSRIA
Suitable For
Solid & timber floors
Pipe Centres (mm)
150/ 200
Heat Output (kWh)
See product details
Acoustic Installations
Yes
Weight With Water (kg/m2)
14

Compare similar products

TorFloor – for Suspended Floors
View more + Compare
TorFloor RdB
View more + Compare

Heat outputs

Heat outputs are dependent on the water temperature, floor construction, system dimensioning, floor finish & design conditions. Please call 01392 36 36 05 to discuss your specific requirements. Heat outputs below are based on 12mm PE-RT pipe at 150mm centres with 6mm ply laid under carpet and 12mm ply under tiles.

Floor Finish Floor and Return Water Temperature (˚C)

55/48 (°C)

50/43 (°C)

45/38 (°C)

40/33 (°C)

Tile Finish (0.01m²K/W)

84 W/m²

70 W/m²

57 W/m²

43 W/m²

15mm Wood Finish (0.1m²K/W)

82 W/m²

69 W/m²

56 W/m²

42 W/m²

Carpet & Underlay (0.15 m²K/W)

70 W/m²

59 W/m²

47 W/m²

36 W/m²

How to specify

We recommend that you order our products directly through us so that you obtain the most appropriate system and performance specification for the project.

To get a quote please click here or call 01392 36 36 05

Information on product performance and suitability can be supplied by our projects team who are available via our technical support line – 01392 36 36 05. Alternatively please speak to your local business development manager or area sales manager who will happily talk you through our product range and also arrange for samples as you may require.

If you need information on complex constructions such as those with specific acoustic properties, or you have a specialist requirement that is not covered by our standard product range please call 01392 36 36 05.

Detailed installation instructions and a layout plan of the system is included in every system that gets dispatched to site. If you require any additional information at the time of installation we recommend you visit our resources library on our website.

A comprehensive support knowledgebase is also available that contains a wealth of information around installing and commissioning our systems. You can visit the knowledgebase online at support.omnie.co.uk
