Our FoilBoard range is a super high efficiency, easy to install heating panel, which is independently tested at BSRIA for outstanding heating performance.

For floating Floor Types
Full panel foiled diffuser to maximise performance in the toughest of projects
High compressive strength XPS construction that doesn't deform easily and is easy to lay and use on site
Unique multi-directional panel system to improve installation time and make laying pipe easy and straightforward
Completely silent on warm up and cool down

Product Description


Why FoilBoard Floating?

  • Fully foiled layer maximises heat output
  • High compressive strength insulation provides strong support
  • Faster to install than traditional insulation panels thanks to multi-directional channels
  • Completely silent on warm up and cool down

High Compressive Strength Insulation with Integrated Heat Diffuser for Maximum Heat Output.

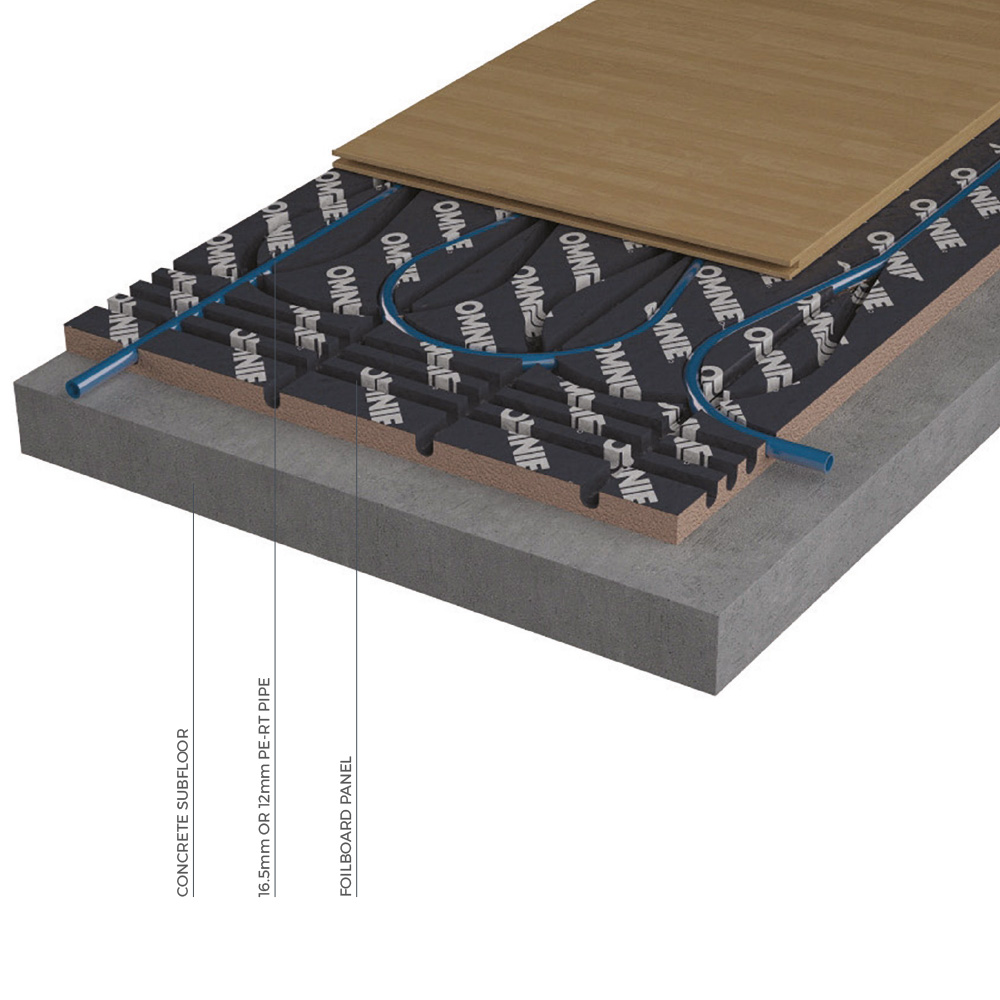

OMNIE FoilBoard Floating system is laid over a flat & even solid floor.

The universal panels provide the support for the fully floating floor deck that is laid over. Each panel is manufactured from extruded polystyrene insulation (XPS) which has a high compressive strength, suitable for floating floor applications.

The heat diffusers are pre-bonded and made from soft temper aluminium. As no thick rigid plates are used the panels are easily trimmed on site. Once the panels are in place, the pipe is pressed into the channels piercing the foil diffuser. To complete the floor a tongue and groove deck or floor finish is laid over.

The product is available in standard thicknesses of 18, 25, 35, 50 and 75mm. These all use 16.5mm pipe except for the 18mm thick FoilBoard, this uses 12mm pipe.

Use FoilBoard – for Floating Floors in your next project

Specifications

Last Updated: 10th August 2017

Our FoilBoard Floating system is laid over a solid floor. The FoilBoard panels provide the support for the fully floating floor deck that is laid over.

FoilBoard is manufactured from high quality extruded polystyrene (XPS) insulation which has a high compressive strength, suitable for floating floor applications. The heat diffusers are pre-bonded and made from soft temper aluminium. As no thick rigid plates are used the panels are easily trimmed on site.

Specification
OMNIE FoilBoard Floating system using 16.5mm or 12mm PE-RT to DIN 4726 pipe installed into FoilBoard panels comprising of XPS extruded polystyrene with prebonded heat diffusers to be installed as a continuous insulation layer to support a fully floating floor. Tongue and groove floor deck to be laid over. The system is to be designed, installed and commissioned to BS1264.

Panel thickness
18mm/25mm/35mm/50mm/75mm

Panel Dimensions
1200 x 600mm

Weight with Water
1.5kg/m2 (50mm)

Pipe
12mm OMNIFLO PE-RT to DIN 4726
16mm OMNIFLO PE-RT to DIN 4726
FORMUFLO pipe may be available with this product

Pipe Centres
150mm using 12mm OMNIFLO pipe
200mm using 16mm OMNIFLO pipe (optional specification)

Existing Slab/Floor Deck
Existing slab/floor deck to meet at least SR2 (5mm deviation in 2m) requirements for floor regularity (BS8204) and preferably SR1 (3mm deviation in 2m). The floor finish company may have their own requirements which take precedence.

Foilboard Suspended has been independently tested at BSRIA

Floor Finish

Flow and Return Water Temperature (°C)

55/48

50/43

45/38

40/33

Tile Finish (0.01m²K/W)

84 W/m²

70 W/m²

57 W/m²

43 W/m²

15mm Wood Finish (0.1m²K/W)

67 W/m²

57 W/m²

46 W/m²

35 W/m²

22mm Wood Finish (0.14m²K/W)

90 W/m²

75 W/m²

61 W/m²

46 W/m²

Carpet & Underlay (0.15 m²K/W)

61 W/m²

51 W/m²

41 W/m²

31 W/m²

Based on 12mm PE-RT pipe at 133mm centres with 22mm chipboard laid under 15mm wood & carpet and underlay, and 22mm plywood laid under tiles. Air Temperature = 20°C. 0.15 m²K/W = 1.5 TOG.

Heat outputs are dependent on the water temperature, floor construction, system dimensioning, floor finish & design conditions. Contact us for advice and information.

Specify Foilboard Floating

To discuss your specification requirements with us please contact your local business development manager by clicking here.

Technical information is included in the datasheet which can be downloaded directly below;

DS-UFH-06 Foilboard Floating Datasheet
IG-UFH-06 Foilboard Floating Install Guide
